SOLAR WATER HEATER
EVACUATED TUBE COLLECTOR
Evacuated of tubes are absorber of the solar water heater. There absorb solar energy converting it into heat for use in water heating. Evacuated tubes have already been used for years in Germany, Canada, China, and UK. There are several types of evacuated tubes in use in the solar industry. At Orbit, We use the "twin-Glass Tube "technology. This type of tube is chosen for its reliability and better performance.
Area Of Implementation
Hotels & Lodges
Institutions
Hospitals, Hostel
Evacuated Tube Basic Specification
| Length (nominal) | 1800 mm |
| outer tube diameter | 58mm |
| Glass Thickness | 1.6 mm |
| material | Borosilicate Glass 3.3 |
| Absorptive Coating | Graded CU-N/CU |
| Absorptance | >92% (AM 1.5) |
| Emittance | <8% ( 80 C) |
| Vacuum | p<5X1-3 pa |
| stagnation temperature | >200 C |
| Heating Loss Maximum | <0.8/(m2 c) |
| strength | 0.8Mpa |
Insulated Storage Tank
| Inner Tank Material | GI/Stainless Steel/Copper |
| Outer Tank Material | Aluminum stucco |
| Tank capacity | customized to Customer Requirement |
| Inlet/Outlet Pipe | stainless Steel / Brass |
| Tank Welding | Tig Welding / Brazing |
| Thermal Insulation | Rock Wool / PUF |
Capacity Selection Chart for ETC
| Capacity available(LPD) | 100 | 150 | 200 | 250 | 300 | 500 |
| Members | 4 | 6 | 8 | 10 | 12 | 20 |
| Area Req. in feet (north south X East West) | 7X4 | 7X5 | 7X7 | 7X9 | 7X10 | 15X15 |

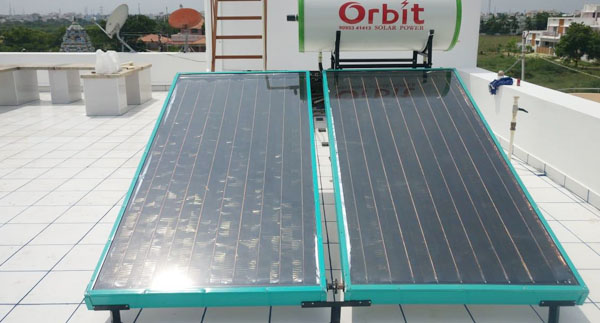

FLATE PLATE COLLECTOR
Solar hot water system is based on the principle of black body absorption. The black surface of the collector absorbs the heat energy from the sun rays and transfer it to the water passing through the copper tubes. Hot water being lighter in density, raised to the insulated storage tank and equal amount of cold water replace this hot water from the copper tubes.
Area Of Implementation
Hotels & Lodges
Institutions
Hospitals, Hostel
Flat Plate Collector Specification
| Absorber | Copper Black Chrome selective Coating |
| Fin Type | Deep Serrated fin to have increase surface area 10-15% |
| copper Quality | 99.99% 0.02pure |
| collector area | 2.0 sq.Mts |
| Header/Raiser tube | Copper 25/12.5 mm.dia |
| Collector Frames | Aluminum Power Coated |
| Collector Insulation | Pluff Slabs For Side and 50 mm. thick Rock Wool Slabs |
Insulated Storage tank
| Inner Tank Material | Stainless Steel/ Copper |
| Outer Tank Material | Aluminum Stucco |
| Tank Capacity | Customized to Customer Requirement |
| Inlet/Outlet Pipe | Stainless steel / Brazing |
| Tank Welding | Tig Welding / Brazing |
| Heating Retention | 48 hours |
Capacity Selection Chart for FPC
| Capacity available(LPD) | 100 | 200 | 300 | 500 | 1000 |
| Members | 4 | 6 | 8 | 10 | 12 |
| Area Req. in feet (north south X East West) | 8X4 | 8X8 | 10X12 | 12X16 | 24X32 |

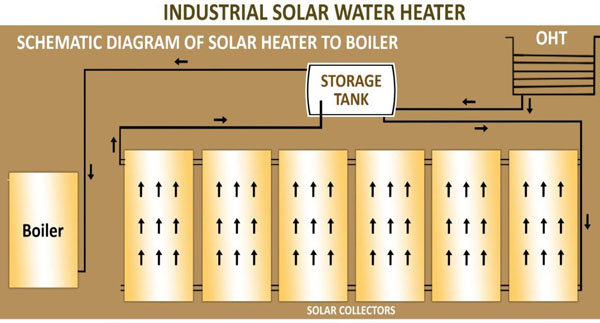

Solar Water heaters For Boilers
Solar hot water System is based on the principle of black body absorption. The black surface of collector absorbs the heat energy from the sun rays and transfer it the water passing through the copper tubes. Hot water being lighter in density, raised to the insulated storage tank and equal amount of cold water replaces this hot water from the copper tubes.
From solar water heater, we can increase the temperature to the maximum of 95 deg. Industries like Textile, Hotel, Rubber and Dairy industries as already in use of boiler for generating steam. The hot Water can be used as a pre heated water for boiler. Conventional fuels like LPG, Diesel, Firewood, etc., can be saved at 30% to 40% on their daily consumption.
Area Of Implementation
Textile Industry
Coir Board Industry
Rubber Industry
Dairy Industry
Canteen
Saving at Glance
| Description | Calorific Value (kcal/kg) | Cost of fuel in rs | Pay back Period |
| LGP | 10882 | 75.00 /Kg | 13 months |
| DIESEL | 10004 | 58.00 / Lit | 15 months |
| Fire Wood | 3600 | 5.00 /Kg | 12 months |
